- Product Size M25
- IP Rating IP68
- Rated Current 50mA
- Rated Voltage 5V
- Interface Type HDMI
- Thread Size M25
Product Advantage
-
Industrial-grade durability
Engineered for outdoor, marine and demanding industrial environments.
-
Reliable IP68 sealing
Waterproof and dustproof performance you can depend on.

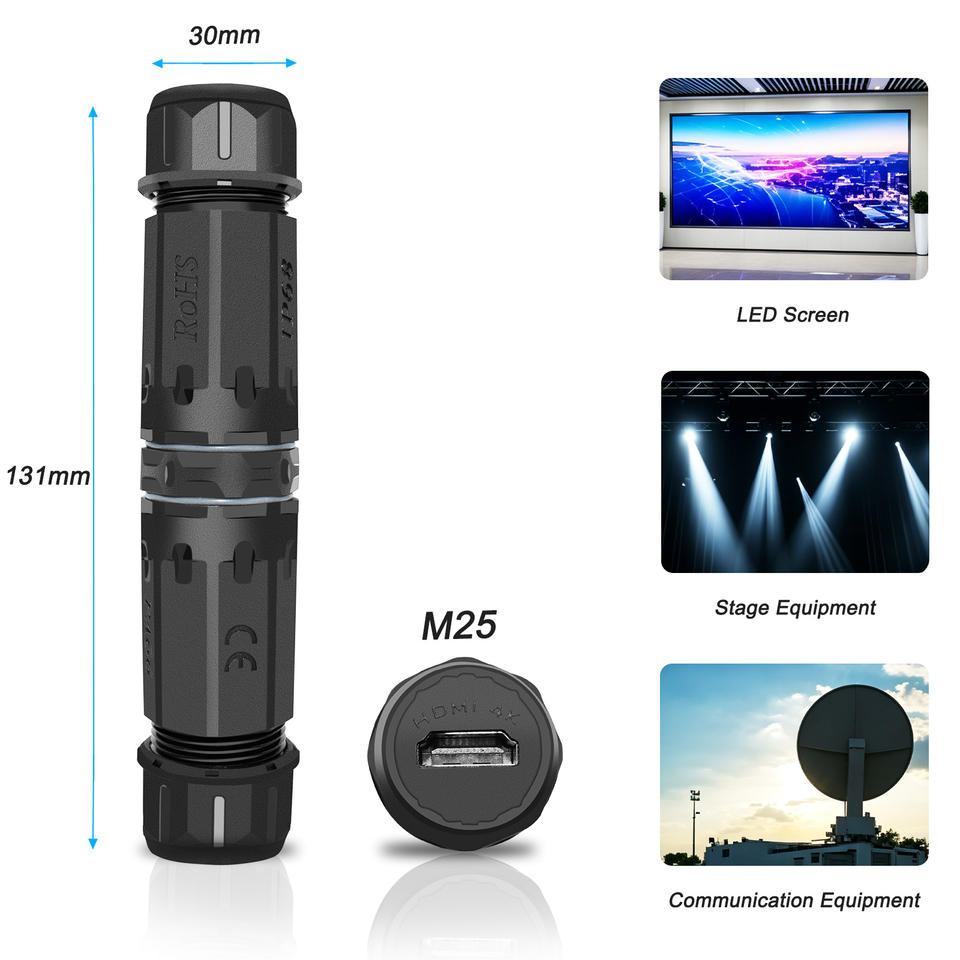

Product Dimension

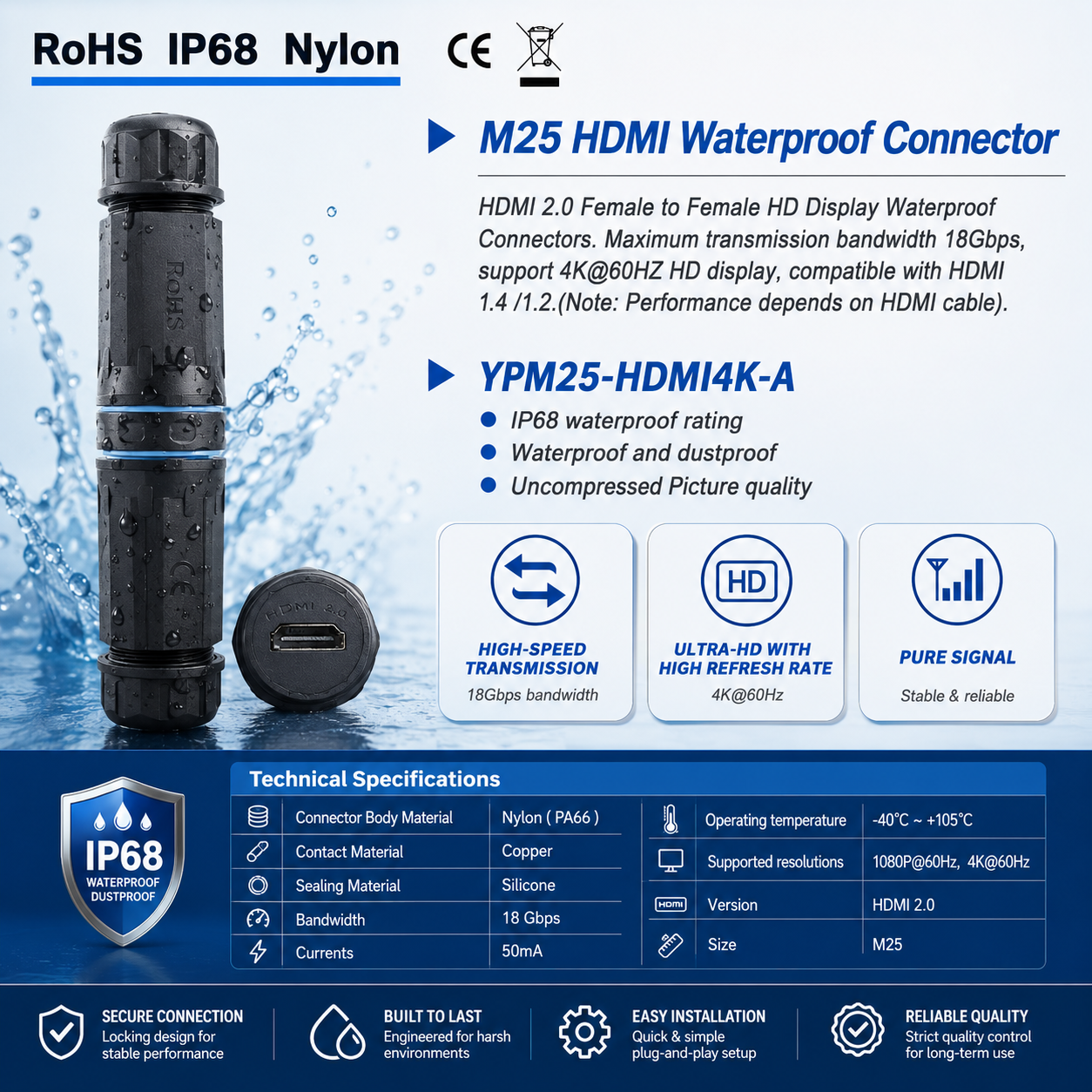

Product Parameter
| Model | YPM25-HDMI4K-A | IP Rating | IP68 |
|---|---|---|---|
| Rated Current | 50mA | Rated Voltage | 5V |
| Interface Type | HDMI | Shell Material | Nylon (PA66) |
| Sealing Material | Silicone | Thread Size | M25 |
Put to work in the field
Real-world scenarios this connector was built for — find the one that matches your deployment environment.
-
01
Outdoor LED Screens
Extend HDMI cables to drive digital signage and billboards exposed to rain and dust.
-
02
Marine Video Systems
Connect monitors and cameras on boats where salt spray and water ingress are concerns.
-
03
Industrial Inspection
Join cables for remote video inspection cameras in wet manufacturing environments.
-
04
AV Over IP
Create rugged connections for professional audio-visual equipment in outdoor venues.
-
05
Security Surveillance
Extend video feeds from high-definition outdoor security cameras to recording units.
-
06
Automotive Displays
Connect rear-seat entertainment screens or dashboards in rugged vehicles.
-
07
Stage Lighting Control
Provide reliable connections for lighting consoles and DMX video systems outdoors.
-
08
Medical Equipment
Secure connections for imaging devices that require frequent cleaning or wet environments.
-
09
Agricultural Machinery
Link GPS and camera displays on tractors and harvesters operating in dusty fields.
-
10
Construction Site Monitoring
Connect cameras to monitors on heavy machinery exposed to extreme weather.
