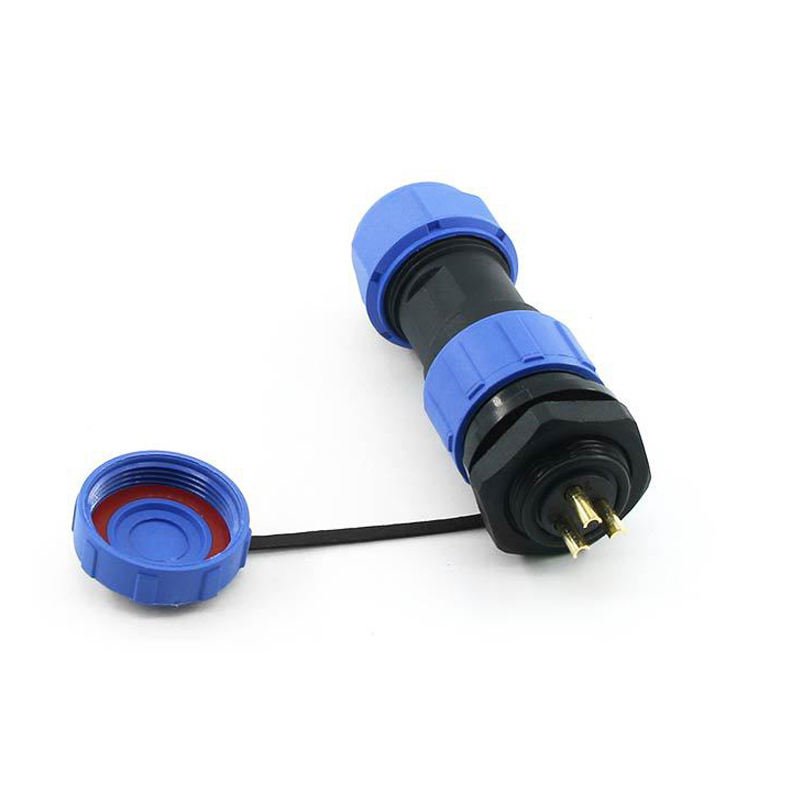

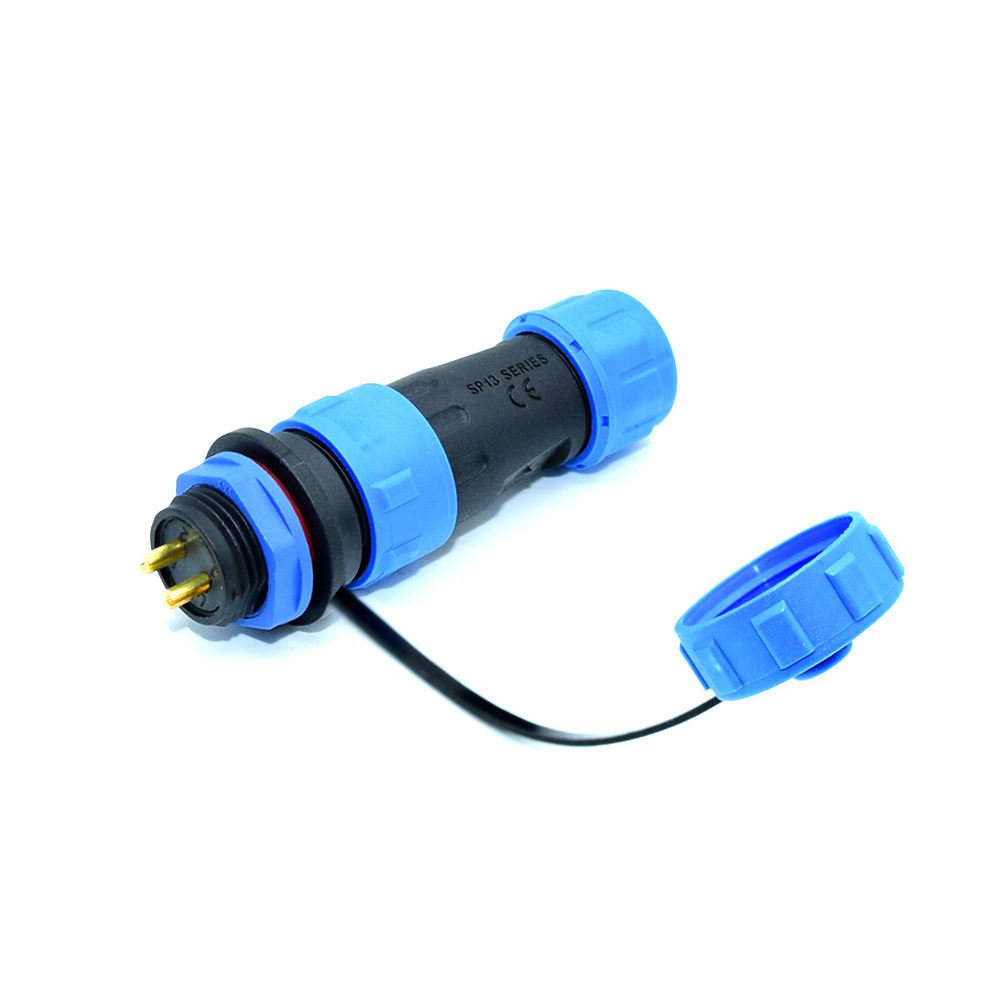

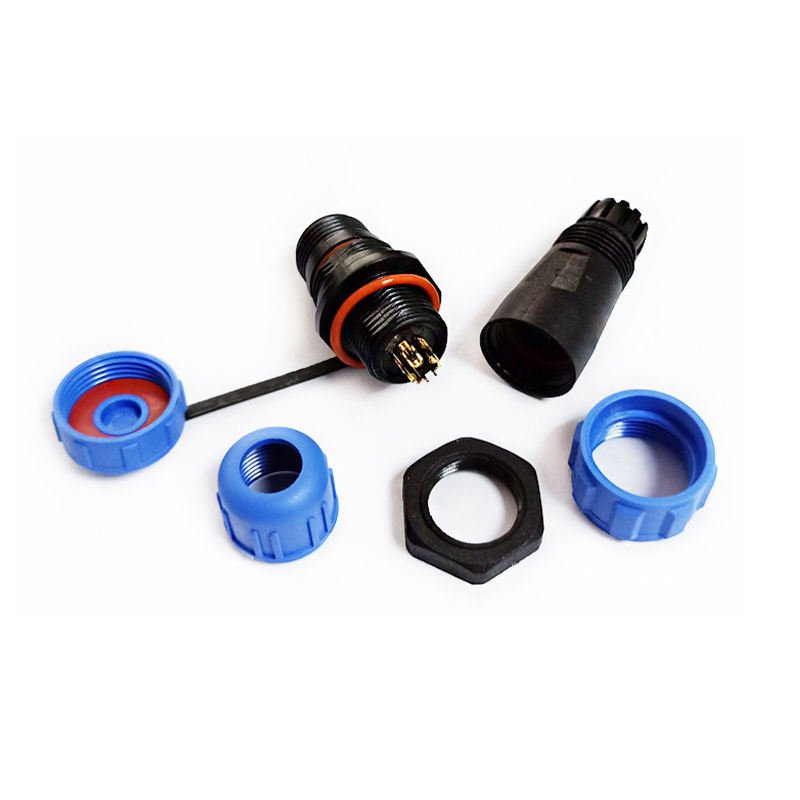

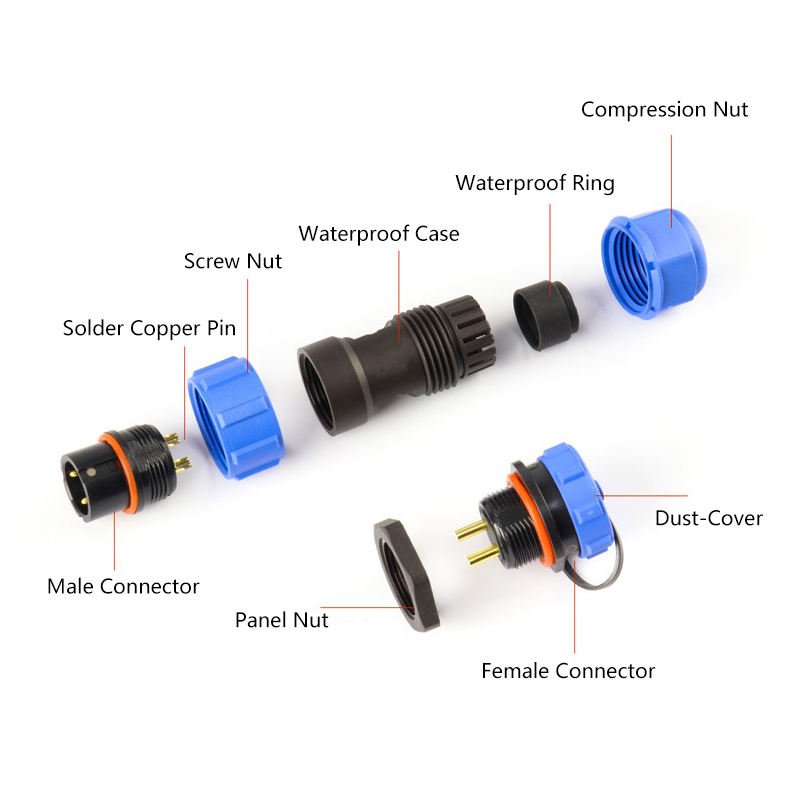

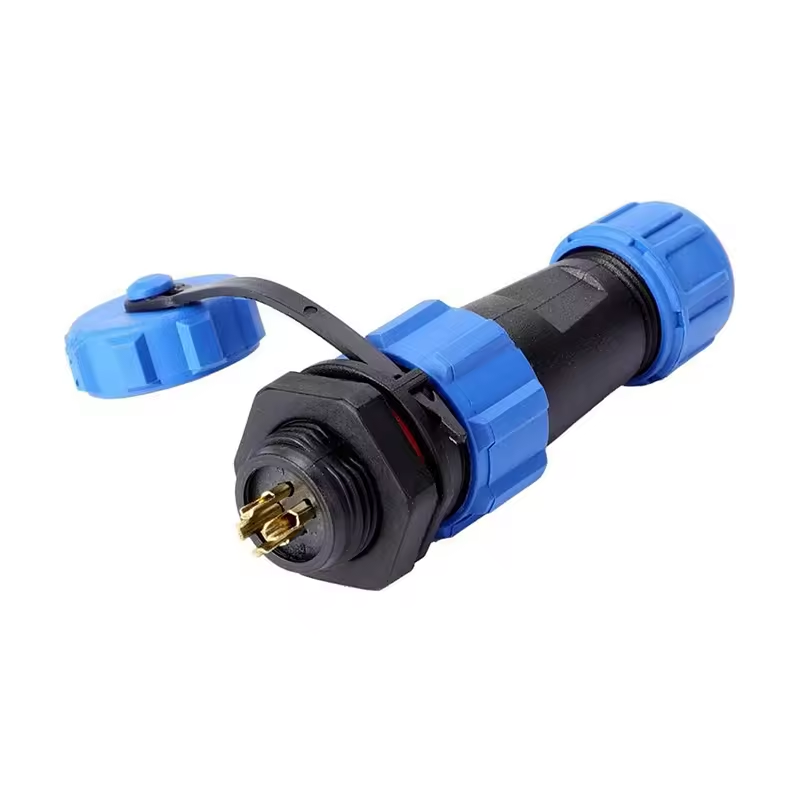

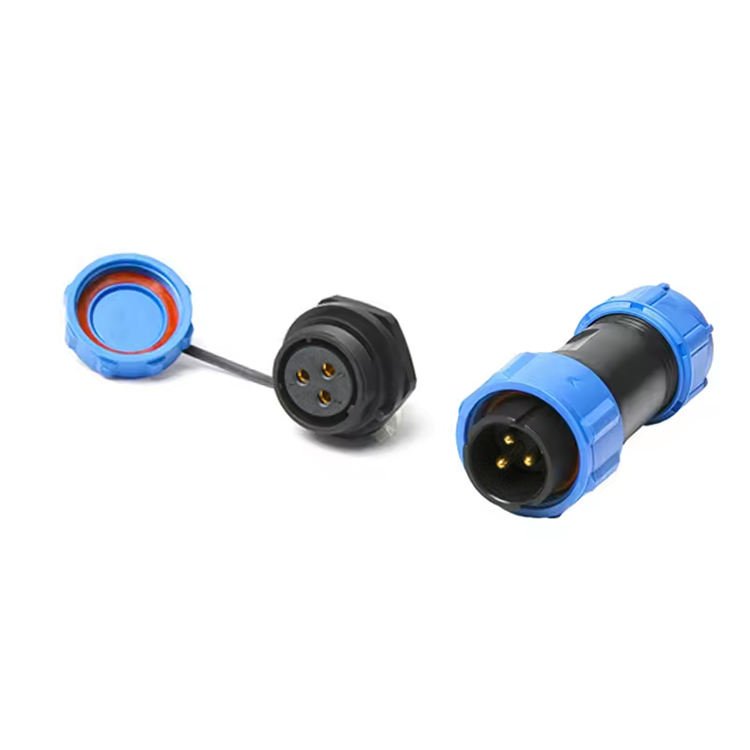

YXY SP17 Series IP68 Waterproof Circular Aviation Connector Set
Model SP17 | SP17 Series IP68 Waterproof Circular Aviation Connector Set | High-Quality Nylon PA66 | Gold-Plated Copper ContactsModel number: SP17Use for: Outdoor lighting, power connection, industrial sensors, and signal linesProtection level: IP68Type: Threaded Circular Aviation Connector SetGender: Male and Female PairMOQ: 10 pieces
- Product Size M24
- Pin 2 Pin
- IP Rating IP68
- Rated Current 25A
- Rated Voltage 500V
- Product Series Circular Aviation Connectors
- Wiring Type Soldering
- Interface Type Pin
- Mating Cycles ≥2000 times
Complies with product certification:
UL
CE
RoHS
REACH
System certification:
IATF 16949
ISO 9001
ISO 14001
Specifications
Part Number: SP17
Part Number: SP17
Part Number: SP17
Part Number: SP17
Part Number: SP17
Part Number: SP17
Part Number: SP17
Model SP17 | SP17 Series IP68 Waterproof Circular Aviation Connector Set | High-Quality Nylon PA66 | Gold-Plated Copper ContactsModel number: SP17Use for: Outdoor lighting, power connection, industrial sensors, and signal linesProtection level: IP68Type: Threaded Circular Aviation Connector SetGender: Male and Female PairMOQ: 10 pieces
Product Advantage
Industrial-grade durability
-
Industrial-grade durability
Engineered for outdoor, marine and demanding industrial environments.
-
Reliable IP68 sealing
Waterproof and dustproof performance you can depend on.
Family series
Product Dimension
Product Parameter
Model
BD-24
Pin
2 Pin
IP Rating
IP68
Rated Current
25A
Rated Voltage
500V AC
Withstand Voltage
2000V AC
Contact Resistance Max
1.0mΩ
Insulation Resistance Min
≥500MΩ
Contacts
φ3.0
Durability
≥500 times
Wire Spec Max
2.5~4.0mm² /14 ~12AWG
Wire range
φ 10.5-φ14mm
Wiring method
Soldering
Work Temperature
-40°C~+85°C
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
