YXY YPM20IDC-CAT6-C Toolless RJ45 CAT6 Waterproof Panel Connector

Description and specifications

Model YPM20IDC-CAT6-C | Adapter / IP68 waterproof connecotr | Male and Female | 24A/450V

Model number:: YPM20IDC-CAT6-C
Use for:: Power / Led Lighting
Type:: Adapter / IP68 waterproof connecotr
Gender:: Male and Female
Material:: PA66&Copper Alloy
MOQ:: 10 pieces

Dispatch 5-day dispatch

Price $1.60

WhatsApp Sales Alibaba Listing Email Us

Description

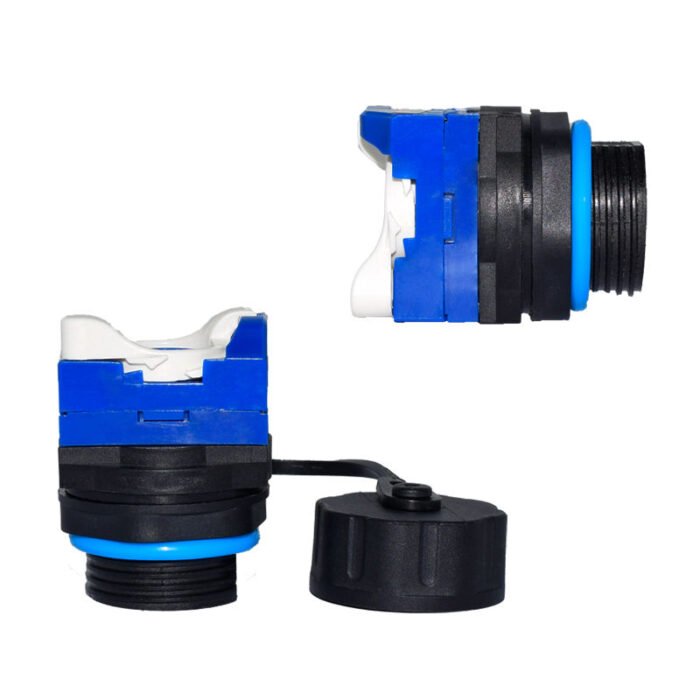

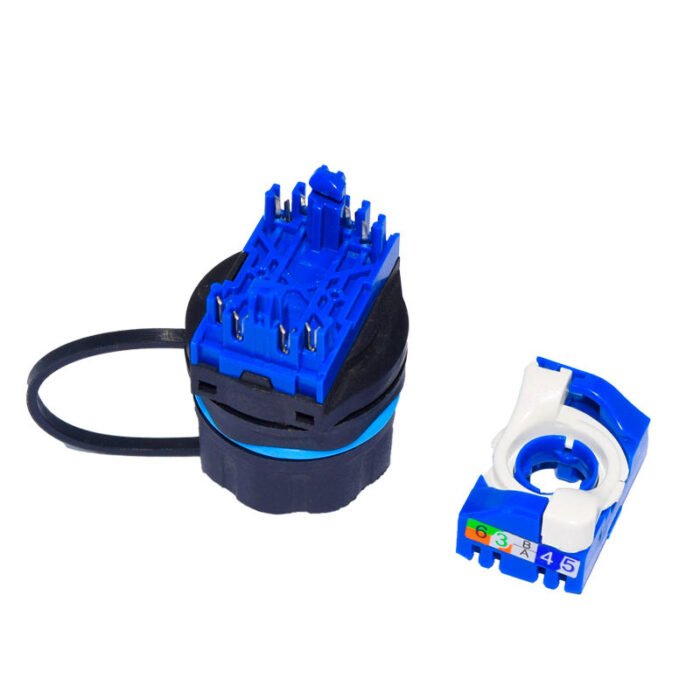

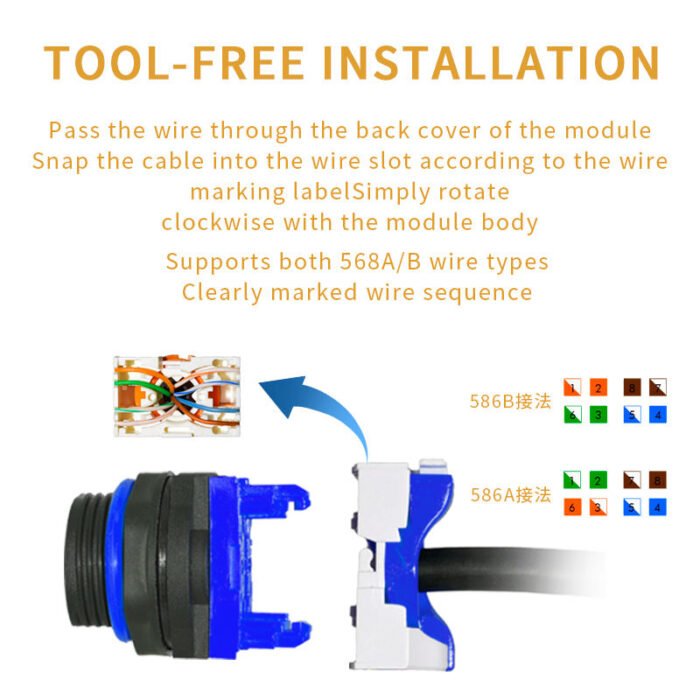

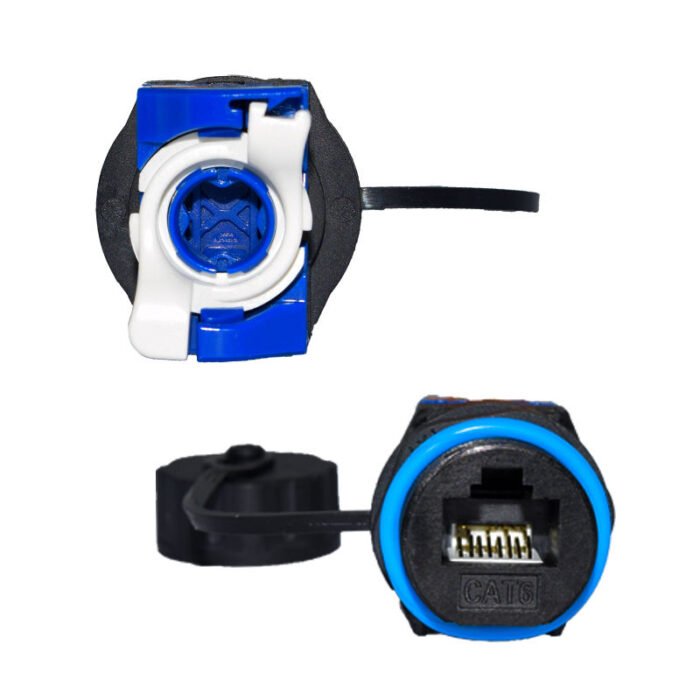

YXY YPM20IDC-CAT6-C is an innovative toolless RJ45 CAT6 panel-mount connector designed for rapid field deployment. The rear side features an integrated Insulation Displacement Connector (IDC) terminal block, allowing installers to terminate Ethernet conductor wires without using punching tools. The front side features an IP68-rated female RJ45 port with a blue ring gasket and a tethered screw-on dust cap. Made from fire-retardant Nylon PA66 and copper alloy contacts, it provides a fast, reliable, and weatherproof networking interface for industrial cabinets and telecom boxes.

Additional information

Type	Toolless Panel Mount RJ45 Connector
Use For	Field termination and quick cabinet wiring
Protection Level	IP68
Pin Count	8-Pin RJ45
Gender	Female (IDC to RJ45 Female)
Material	Nylon PA66 & Copper Contacts
Moq	10 pieces
